Compact Modulating Electric Actuator with Modbus Control System

Brand Name : DCL

Model Number : DCL modulating electric actuator

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Delivery Time : 7 working days

Packaging Details : carton/pallet

Power Supply : 24VAC/110VAV/220VAC/380VAC/24VDC

Installation Angle : 360°

Standard Time/Torque : 15S to 75S/18Nm to 2500Nm/160in.lbs to 22125in.lbs

Total Weight : 1.2KG to 20KG

Motor Power : 6W to 140W

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Protection Grade : IP67 NEMA4/4X

Contact Now

Description

DCL’s electric actuators can support Modbus RTU protocol communication with 485 terminals. The 485 terminals and 4-20mA input/output terminals are integrated on one control pack. Customer can choose one of these two control signals with very simple setting in industry field. Distributors and system integrators only need to keep one type of stocks for two types of control signals,

Fieldbus control systems are now becoming more and more popular in many industries. Using fieldbus control systems can sharply lower the costs of system construction and maintenance. DCL’s electric actuators can support kinds of fieldbus protocols, such as Modbus RTU and CAN bus. DCL also can do customized design of wireless communication electric actuators, which can be controlled by mobile phones or remote controllers.

Torque: 100Nm to 2500Nm

Power: 24VDC/VAC, 110VAC, 220VAC, 380VAC

Control Signals: 4-20mA/2-10V/1-5V/Modbus/CAN

Specification:

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm 10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm 19.5Kg
DCL-250 75S/2500Nm 20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm 3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200


Cheap Compact Modulating Electric Actuator with Modbus Control System for sale

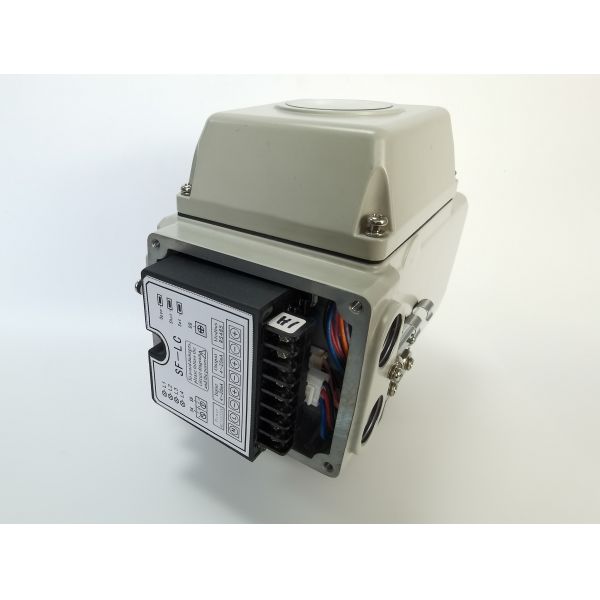

Compact Modulating Electric Actuator with Modbus Control System Images
